About Instrument and its Applications-
X-ray Diffraction (XRD) is a high-tech, non-destructive technique for analyzing a wide range of materials, including fluids, metals, minerals, polymers, catalysts, plastics, pharmaceuticals, thin-film coatings, ceramics, solar cells and semiconductors. Throughout industry and research institutions, XRD has become an indispensable method for materials investigation, characterization and quality control. Example areas of application include qualitative and quantitative phase analysis, crystallography, structure and relaxation determination, texture and residual stress investigations. The X-ray Diffractrometer can be used for nearly all X-ray diffraction application, such as structure determination, phase analysis, stress and texture measurement.

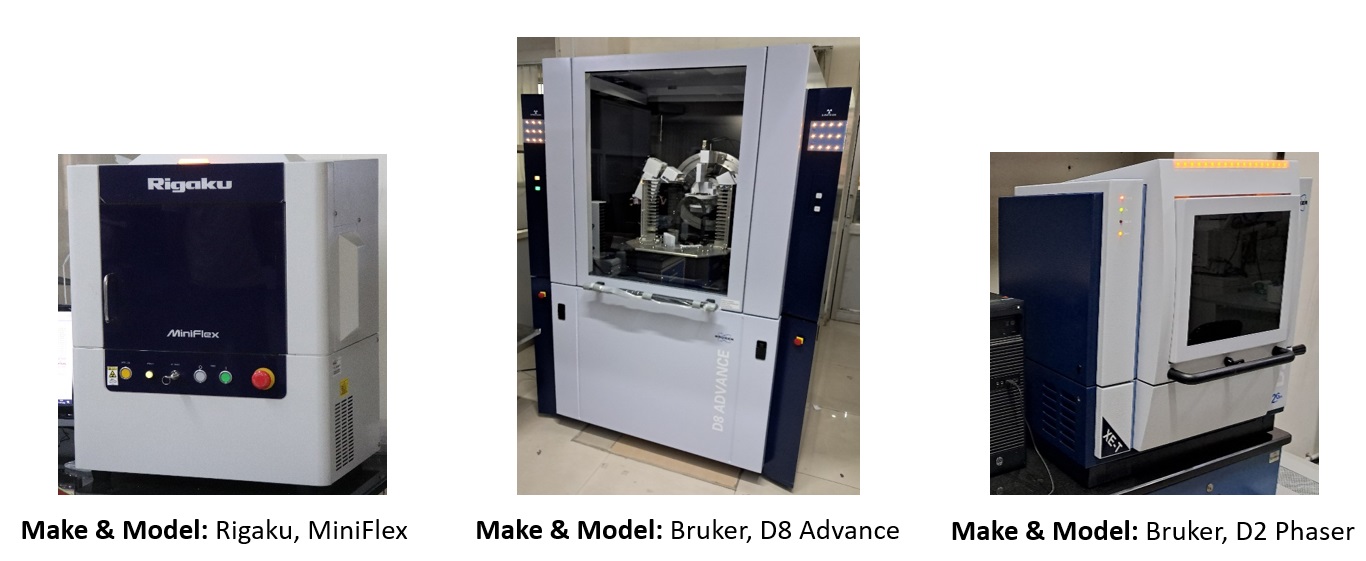

General Information of three XRD systems available-
1) Make- Rigaku
Model- Miniflex
Year of Installation- 2018

2) Make- Bruker
Model- D8-Advance
Year of Installation- 2023

3) Make- Bruker
Model- D2-Phaser
Year of Installation- 2023

Specifications-
1) X-Ray Source : 2.2kW Cu anode, 40 kV/40 mA
2) Detector : LINXEYE XE
3) Smallest angular step size: 0.0001 degree
4) Reproducibility : +/- 0.0001 degree
5) Angular range (2Theta): 5 degree to 120 degree

Sample Requirements-
Amount- 1g (in fine powder form).


Contact Persons-
Mr. Devendra Sharma
Junior Lab Assistant
Tel: +91-1332-286267

Mohd. Danish
Junior Lab Assistant
E-mail: danish.iic2019@iitr.ac.in
Tel: +91-1332-286302

Mr. Ravindra Saini
Technical Officer
E-mail: ravis.mic2014@iitr.ac.in
Tel: +91-1332-286272
