Thermal Conductivity Meter
There are a number of possible ways to measure thermal conductivity, each of them suitable for a limited range of materials, depending on the thermal properties and the medium temperature. Three classes of methods exist to measure the thermal conductivity of a sample: steady-state, time-domain, and frequency-domain methods.
About Instrument and its Applications :-

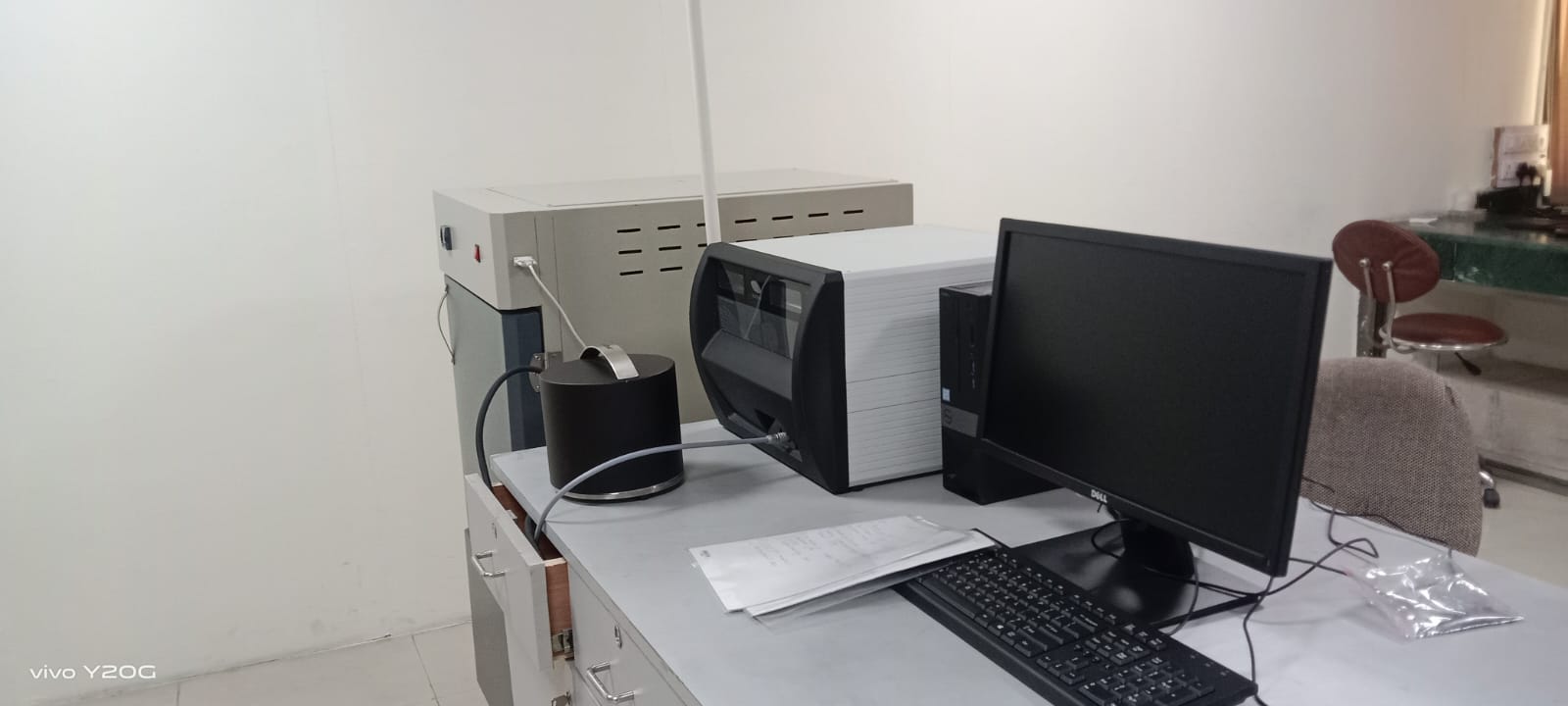

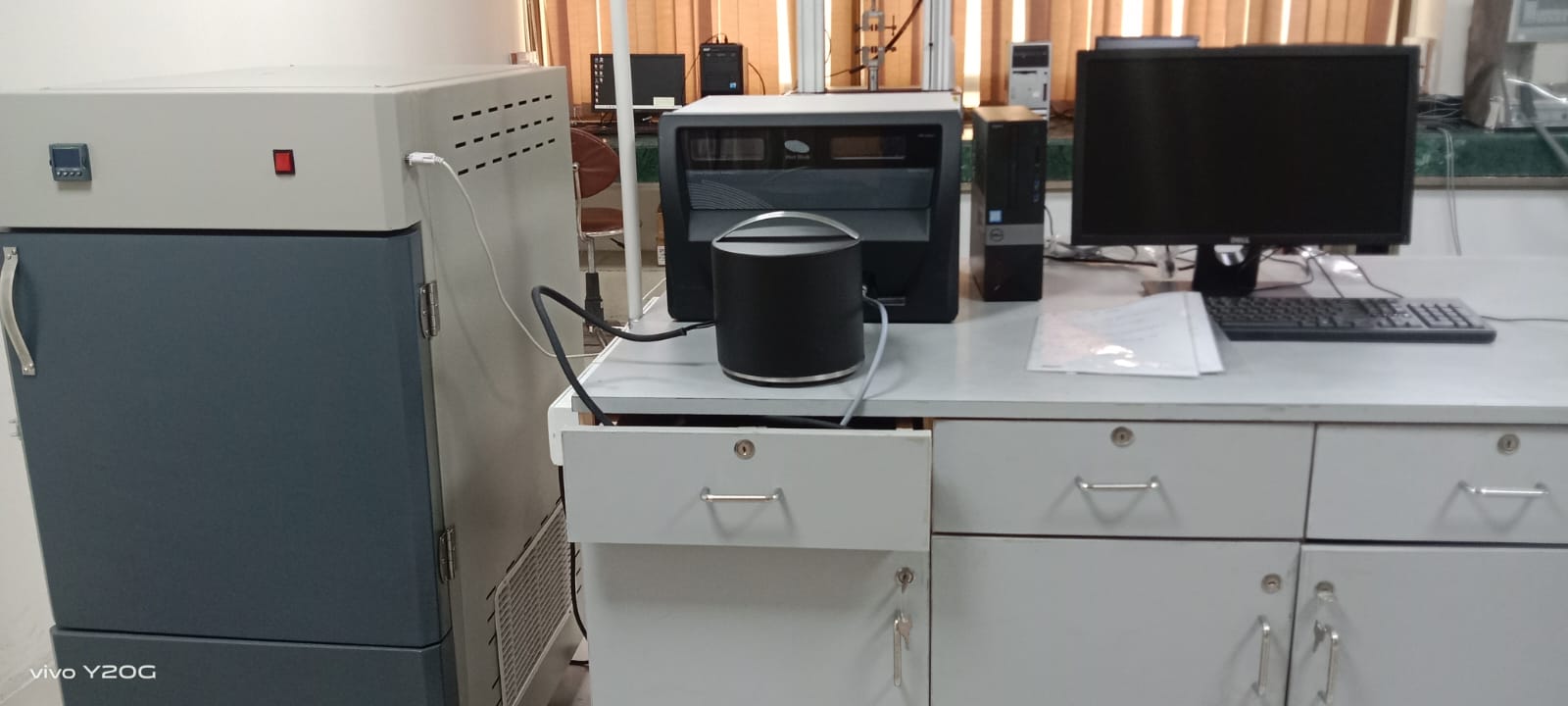

The popular Hot Disk TPS 2500S is highly sensitive instrument . This multi-purpose, highly performing R&D thermal conductivity meter is designed for precision analysis of thermal transport properties of materials of all types: solids, liquids, powders, and pastes. It is frequently used in automated production line QC testing. The TPS 2500S handles sub-millimetre-thick bulk samples, has a Thermal Conductivity range of 0.005 to 1800 W/m/K, and accommodates temperatures from -50 to 250ºC.
It can also analyse the anisotropic thermal transport properties of uniaxial materials. The TPS 2500S is a capital research instrument, meets ISO 22007-2 and is CE marked.
General Information :-
Make – Hot Disk
Model – TPS 2500S
Year of Installation - 2022
Specifications :- Thermal Conductivity : 0.005 to 1800 W/m/K.
Thermal Diffusivity : 0.01 to 1200 mm²/s.
Thermal Effusivity : 20 to 55000 W√s/m²/K.
Specific Heat Capacity : Up to 5 MJ/m³/K.
Reproducibility : Typically better than 1 %.
Accuracy : Better than 5 %.
Temperature Range : -50 °C to 250 °C.
Measurement Modules : -
Isotropic, Single Sided Testing, One Dimensional, Anisotropic, Slab, Thin Film, Low Density-Highly Insulating and Specific Heat Capacity
Acceptable Sample Type :- Slab, Powder, Liquid, Paste, Thin Film.
Sample Requirement :-
Bulk Sample : 0.5 mm thick x 2 mm wide (circle or square). [Minimum]
Rod Sample : 5 mm long x 2.5 mm wide (circle or square). [Minimum]
Slab Sample : 42 μm thick x 8 mm wide (circle or square). [Minimum]
Thin Film Sample : 20 μm thick x 22 mm wide (circle or square). [Minimum]
Powder Sample : 50 cm3 Volume, [Minimum]
Note: In case of solid samples, the surface must be smooth.
